Rocketry Parts Database >> Fins >>

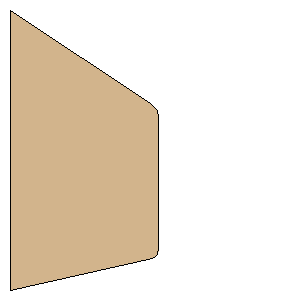

Estes lil Tinker Freeform Fin Se Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 53.9750 mm)
Point 2:(27.3816 mm, 47.8902 mm)
Point 3:(27.7670 mm, 47.7478 mm)
Point 4:(28.1004 mm, 47.5076 mm)
Point 5:(28.3575 mm, 47.1871 mm)
Point 6:(28.5196 mm, 46.8096 mm)
Point 7:(28.5750 mm, 46.4025 mm)
Point 8:(28.5750 mm, 20.7492 mm)
Point 9:(28.5511 mm, 20.3601 mm)
Point 10:(28.4796 mm, 19.9769 mm)
Point 11:(28.3618 mm, 19.6054 mm)
Point 12:(28.1993 mm, 19.2511 mm)
Point 13:(27.9946 mm, 18.9193 mm)
Point 14:(27.7508 mm, 18.6152 mm)
Point 15:(27.4716 mm, 18.3432 mm)
Point 16:(27.1612 mm, 18.1074 mm)
Point 17:(0.0000 mm, 0.0000 mm)
Width:2.1250 inches (53.9750 mm)
Height:2.1250 inches (53.9750 mm)
