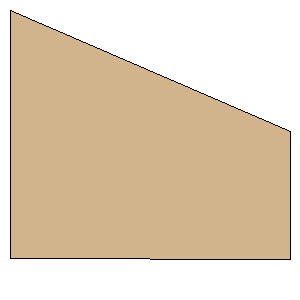

Nike Hercules Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.5200 inches (38.6080 mm) | | Tip Chord: | 0.7800 inches (19.8120 mm) | | Sweep Distance: | 0.7440 inches (18.8976 mm) | | SemiSpan: | 1.7100 inches (43.4340 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (43.4340 mm, 18.8976 mm) | | Point 3: | (43.4340 mm, 38.7096 mm) | | Point 4: | (0.0000 mm, 38.6080 mm) | | Width: | 1.7100 inches (43.4340 mm) | | Height: | 1.5240 inches (38.7096 mm) |
