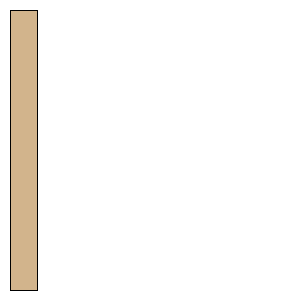

XR-71 Geen Burd Trapezoid Fin Se Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 3.7500 inches (95.2500 mm) | | Tip Chord: | 3.7500 inches (95.2500 mm) | | Sweep Distance: | 0.0000 inches (0.0000 mm) | | SemiSpan: | 0.3680 inches (9.3472 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (9.3472 mm, 0.0000 mm) | | Point 3: | (9.3472 mm, 95.2500 mm) | | Point 4: | (0.0000 mm, 95.2500 mm) | | Width: | 0.3680 inches (9.3472 mm) | | Height: | 3.7500 inches (95.2500 mm) |
