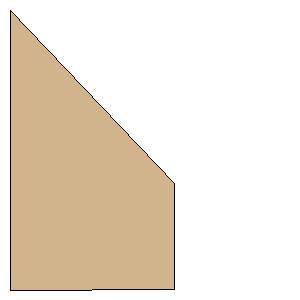

SA-2B Guidline Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:10.5000 inches (266.7000 mm)
Tip Chord:4.0000 inches (101.6000 mm)
Sweep Distance:6.4910 inches (164.8714 mm)
SemiSpan:6.1600 inches (156.4640 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(156.4640 mm, 164.8714 mm)
Point 3:(156.4640 mm, 266.4714 mm)
Point 4:(0.0000 mm, 266.7000 mm)
Width:6.1600 inches (156.4640 mm)
Height:10.5000 inches (266.7000 mm)
