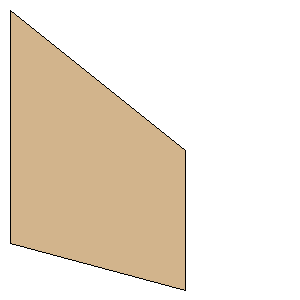

MH-5, Cherub Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.0000 inches (50.8000 mm) | | Tip Chord: | 1.2000 inches (30.4800 mm) | | Sweep Distance: | 1.2000 inches (30.4800 mm) | | SemiSpan: | 1.5000 inches (38.1000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (38.1000 mm, 30.4800 mm) | | Point 3: | (38.1000 mm, 60.9600 mm) | | Point 4: | (0.0000 mm, 50.8000 mm) | | Width: | 1.5000 inches (38.1000 mm) | | Height: | 2.4000 inches (60.9600 mm) |
