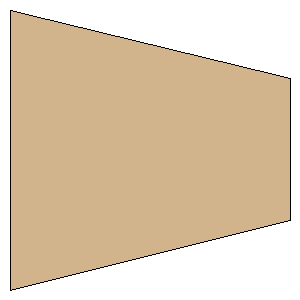

OverDrive Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.4961 inches (38.0009 mm) | | Tip Chord: | 0.7579 inches (19.2507 mm) | | Sweep Distance: | 0.3661 inches (9.2989 mm) | | SemiSpan: | 1.4961 inches (38.0009 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (38.0009 mm, 9.2989 mm) | | Point 3: | (38.0009 mm, 28.5496 mm) | | Point 4: | (0.0000 mm, 38.0009 mm) | | Width: | 1.4961 inches (38.0009 mm) | | Height: | 1.4961 inches (38.0009 mm) |
