Rocketry Parts Database >> Fins >>

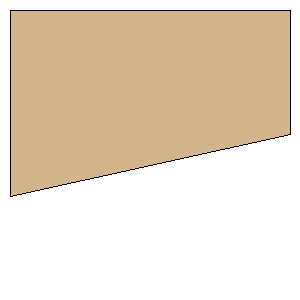

Pigs Ear Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:1.5000 inches (38.1000 mm)
Tip Chord:1.0000 inches (25.4000 mm)
Sweep Distance:0.0000 inches (0.0000 mm)
SemiSpan:2.2500 inches (57.1500 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(57.1500 mm, 0.0000 mm)
Point 3:(57.1500 mm, 25.4000 mm)
Point 4:(0.0000 mm, 38.1000 mm)
Width:2.2500 inches (57.1500 mm)
Height:1.5000 inches (38.1000 mm)
