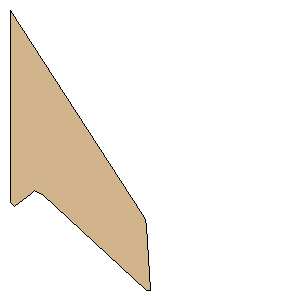

SR1 (Scrap Rocket #1) Freeform F Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 152.4000 mm) | | Point 2: | (3.1750 mm, 155.5750 mm) | | Point 3: | (15.8750 mm, 146.0500 mm) | | Point 4: | (19.0500 mm, 142.8750 mm) | | Point 5: | (25.4000 mm, 146.0500 mm) | | Point 6: | (107.9500 mm, 222.2500 mm) | | Point 7: | (111.1250 mm, 222.2500 mm) | | Point 8: | (107.9500 mm, 171.4500 mm) | | Point 9: | (107.3632 mm, 166.7276 mm) | | Point 10: | (104.7750 mm, 161.9250 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Width: | 6.0000 inches (152.4000 mm) | | Height: | 8.7500 inches (222.2500 mm) |
