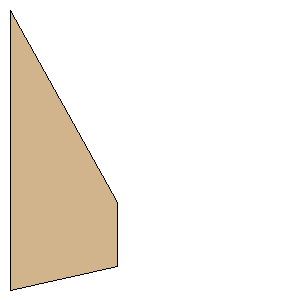

Mustang Jr. Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 3.2500 inches (82.5500 mm) | | Tip Chord: | 0.7500 inches (19.0500 mm) | | Sweep Distance: | 2.2320 inches (56.6928 mm) | | SemiSpan: | 1.2500 inches (31.7500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (31.7500 mm, 56.6928 mm) | | Point 3: | (31.7500 mm, 75.7428 mm) | | Point 4: | (0.0000 mm, 82.5500 mm) | | Width: | 1.2500 inches (31.7500 mm) | | Height: | 3.2500 inches (82.5500 mm) |
