Rocketry Parts Database >> Fins >>

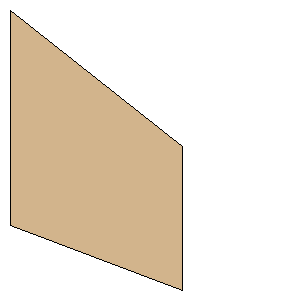

Estes Fatboy Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:3.0000 inches (76.2000 mm)
Tip Chord:2.0000 inches (50.8000 mm)
Sweep Distance:1.9000 inches (48.2600 mm)
SemiSpan:2.4000 inches (60.9600 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(60.9600 mm, 48.2600 mm)
Point 3:(60.9600 mm, 99.0600 mm)
Point 4:(0.0000 mm, 76.2000 mm)
Width:2.4000 inches (60.9600 mm)
Height:3.9000 inches (99.0600 mm)
