Der SchwarzenEGGer Freeform Fin Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

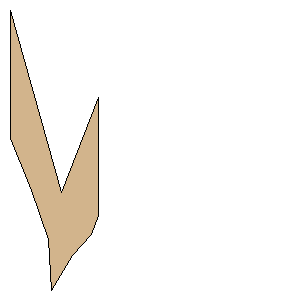

Point 1:(0.0000 mm, 62.4800 mm)
Point 2:(10.5444 mm, 87.9094 mm)
Point 3:(19.0208 mm, 111.9260 mm)
Point 4:(20.0804 mm, 136.6490 mm)
Point 5:(30.3228 mm, 120.0493 mm)
Point 6:(40.0000 mm, 109.8069 mm)
Point 7:(43.0306 mm, 100.1334 mm)
Point 8:(43.0979 mm, 42.5661 mm)
Point 9:(25.0250 mm, 88.9690 mm)
Point 10:(0.0000 mm, 0.0000 mm)
Width:2.4598 inches (62.4800 mm)
Height:5.3799 inches (136.6490 mm)
