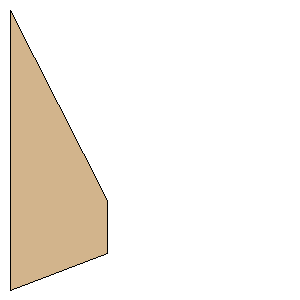

SA-2B Guidline Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 10.5000 inches (266.7000 mm) | | Tip Chord: | 2.0000 inches (50.8000 mm) | | Sweep Distance: | 7.1250 inches (180.9750 mm) | | SemiSpan: | 3.6500 inches (92.7100 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (92.7100 mm, 180.9750 mm) | | Point 3: | (92.7100 mm, 231.7750 mm) | | Point 4: | (0.0000 mm, 266.7000 mm) | | Width: | 3.6500 inches (92.7100 mm) | | Height: | 10.5000 inches (266.7000 mm) |
