Rocketry Parts Database >> Fins >>

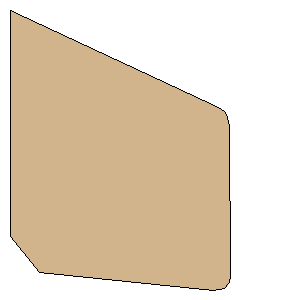

Alan's Semroc Marauder Freeform Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 39.6240 mm)
Point 2:(5.0800 mm, 45.9740 mm)
Point 3:(35.5600 mm, 49.0220 mm)
Point 4:(37.5920 mm, 48.7680 mm)
Point 5:(38.3540 mm, 47.7520 mm)
Point 6:(38.6080 mm, 46.7360 mm)
Point 7:(38.3540 mm, 20.3200 mm)
Point 8:(38.1000 mm, 18.7960 mm)
Point 9:(37.5920 mm, 17.7800 mm)
Point 10:(36.5760 mm, 17.0180 mm)
Point 11:(0.0000 mm, 0.0000 mm)
Width:1.5600 inches (39.6240 mm)
Height:1.9300 inches (49.0220 mm)
