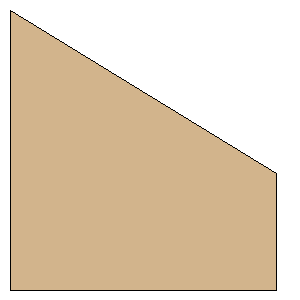

The Launch Pad Rapier Trapezoid Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.3620 inches (59.9948 mm) | | Tip Chord: | 0.9840 inches (24.9936 mm) | | Sweep Distance: | 1.3780 inches (35.0012 mm) | | SemiSpan: | 2.2440 inches (56.9976 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (56.9976 mm, 35.0012 mm) | | Point 3: | (56.9976 mm, 59.9948 mm) | | Point 4: | (0.0000 mm, 59.9948 mm) | | Width: | 2.2440 inches (56.9976 mm) | | Height: | 2.3620 inches (59.9948 mm) |
