Rocketry Parts Database >> Fins >>

Stanard Missile - RIM 66a Freefo Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

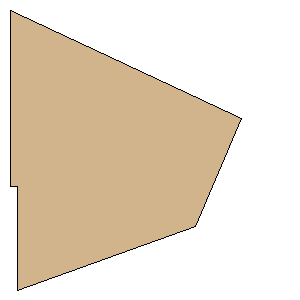

Point 1:(0.0000 mm, 36.2204 mm)
Point 2:(1.5748 mm, 36.2204 mm)
Point 3:(1.5748 mm, 57.4802 mm)
Point 4:(38.1000 mm, 44.4500 mm)
Point 5:(47.6250 mm, 22.2250 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:1.8750 inches (47.6250 mm)
Height:2.2630 inches (57.4802 mm)
