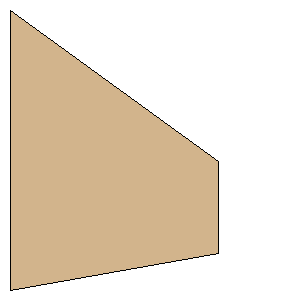

Smoke and Fire Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 3.9957 inches (101.4908 mm) | | Tip Chord: | 1.3173 inches (33.4594 mm) | | Sweep Distance: | 2.1645 inches (54.9783 mm) | | SemiSpan: | 2.9791 inches (75.6691 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (75.6691 mm, 54.9783 mm) | | Point 3: | (75.6691 mm, 88.4377 mm) | | Point 4: | (0.0000 mm, 101.4908 mm) | | Width: | 2.9791 inches (75.6691 mm) | | Height: | 3.9957 inches (101.4908 mm) |
