Rocketry Parts Database >> Fins >>

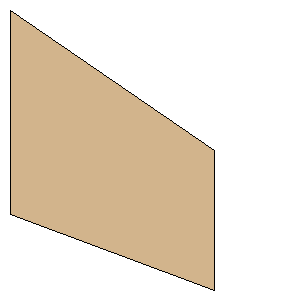

Estes USS Atlantis Trapezoid Fin Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:2.3750 inches (60.3250 mm)
Tip Chord:1.6250 inches (41.2750 mm)
Sweep Distance:1.6250 inches (41.2750 mm)
SemiSpan:2.3750 inches (60.3250 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(60.3250 mm, 41.2750 mm)
Point 3:(60.3250 mm, 82.5500 mm)
Point 4:(0.0000 mm, 60.3250 mm)
Width:2.3750 inches (60.3250 mm)
Height:3.2500 inches (82.5500 mm)
