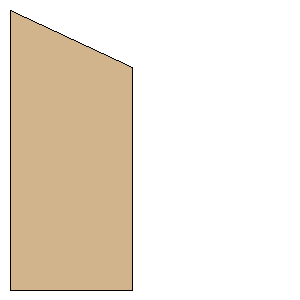

Delta X-15 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 4.8750 inches (123.8250 mm) | | Tip Chord: | 3.8750 inches (98.4250 mm) | | Sweep Distance: | 1.0000 inches (25.4000 mm) | | SemiSpan: | 2.1250 inches (53.9750 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (53.9750 mm, 25.4000 mm) | | Point 3: | (53.9750 mm, 123.8250 mm) | | Point 4: | (0.0000 mm, 123.8250 mm) | | Width: | 2.1250 inches (53.9750 mm) | | Height: | 4.8750 inches (123.8250 mm) |
