Rocketry Parts Database >> Fins >>

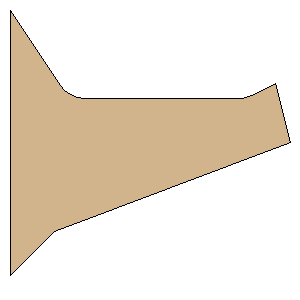

Longsword Starfighter Freeform F Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 114.3000 mm)
Point 2:(19.0500 mm, 95.2500 mm)
Point 3:(120.6500 mm, 57.1500 mm)
Point 4:(114.3000 mm, 31.7500 mm)
Point 5:(104.2820 mm, 36.7592 mm)
Point 6:(102.9300 mm, 37.3399 mm)
Point 7:(101.5200 mm, 37.7603 mm)
Point 8:(100.0710 mm, 38.0148 mm)
Point 9:(98.6019 mm, 38.1000 mm)
Point 10:(32.1968 mm, 38.1000 mm)
Point 11:(29.1078 mm, 37.7186 mm)
Point 12:(26.2042 mm, 36.5973 mm)
Point 13:(23.6607 mm, 34.8034 mm)
Point 14:(21.6298 mm, 32.4447 mm)
Point 15:(0.0000 mm, 0.0000 mm)
Width:4.7500 inches (120.6500 mm)
Height:4.5000 inches (114.3000 mm)
