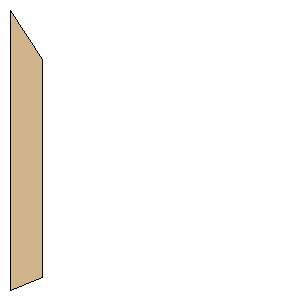

Saturn V Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.1250 inches (28.5750 mm) | | Tip Chord: | 0.8750 inches (22.2250 mm) | | Sweep Distance: | 0.2002 inches (5.0851 mm) | | SemiSpan: | 0.1300 inches (3.3020 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (3.3020 mm, 5.0851 mm) | | Point 3: | (3.3020 mm, 27.3101 mm) | | Point 4: | (0.0000 mm, 28.5750 mm) | | Width: | 0.1300 inches (3.3020 mm) | | Height: | 1.1250 inches (28.5750 mm) |
