The Launch Pad Harpoon AGM-84 Fr Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

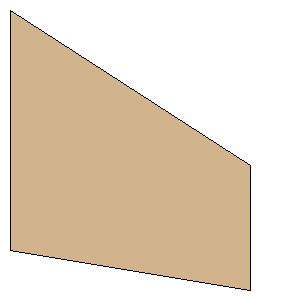

Point 1:(0.0000 mm, 57.1500 mm)
Point 2:(57.1500 mm, 66.5480 mm)
Point 3:(57.1598 mm, 37.0392 mm)
Point 4:(0.0000 mm, 0.0000 mm)
Width:2.2504 inches (57.1598 mm)
Height:2.6200 inches (66.5480 mm)
