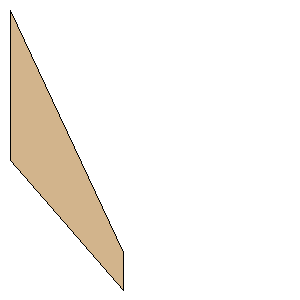

Pay Forward Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.5000 inches (38.1000 mm) | | Tip Chord: | 0.3750 inches (9.5250 mm) | | Sweep Distance: | 2.4120 inches (61.2648 mm) | | SemiSpan: | 1.1250 inches (28.5750 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (28.5750 mm, 61.2648 mm) | | Point 3: | (28.5750 mm, 70.7898 mm) | | Point 4: | (0.0000 mm, 38.1000 mm) | | Width: | 1.1250 inches (28.5750 mm) | | Height: | 2.7870 inches (70.7898 mm) |
