Charlene, Sir! Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

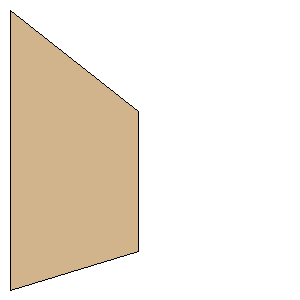

Root Chord:3.2740 inches (83.1596 mm)
Tip Chord:1.6370 inches (41.5798 mm)
Sweep Distance:1.1920 inches (30.2768 mm)
SemiSpan:1.5000 inches (38.1000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(38.1000 mm, 30.2768 mm)
Point 3:(38.1000 mm, 71.8566 mm)
Point 4:(0.0000 mm, 83.1596 mm)
Width:1.5000 inches (38.1000 mm)
Height:3.2740 inches (83.1596 mm)
