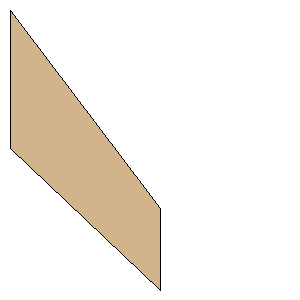

Estes Sly Bolt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.5000 inches (38.1000 mm) | | Tip Chord: | 0.8750 inches (22.2250 mm) | | Sweep Distance: | 2.1480 inches (54.5592 mm) | | SemiSpan: | 1.6250 inches (41.2750 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (41.2750 mm, 54.5592 mm) | | Point 3: | (41.2750 mm, 76.7842 mm) | | Point 4: | (0.0000 mm, 38.1000 mm) | | Width: | 1.6250 inches (41.2750 mm) | | Height: | 3.0230 inches (76.7842 mm) |
