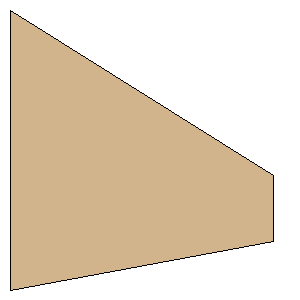

Rogue Interdictor.rkt Trapezoid Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 4.2500 inches (107.9500 mm) | | Tip Chord: | 1.0000 inches (25.4000 mm) | | Sweep Distance: | 2.5078 inches (63.6981 mm) | | SemiSpan: | 4.0000 inches (101.6000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (101.6000 mm, 63.6981 mm) | | Point 3: | (101.6000 mm, 89.0981 mm) | | Point 4: | (0.0000 mm, 107.9500 mm) | | Width: | 4.0000 inches (101.6000 mm) | | Height: | 4.2500 inches (107.9500 mm) |
