Rocketry Parts Database >> Fins >>

Estes ASP Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

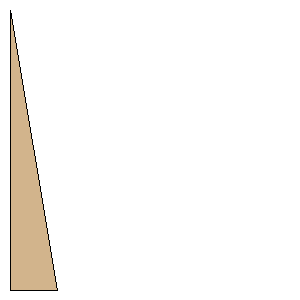

Root Chord:5.8750 inches (149.2250 mm)
Tip Chord:0.0000 inches (0.0000 mm)
Sweep Distance:5.8750 inches (149.2250 mm)
SemiSpan:1.0000 inches (25.4000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(25.4000 mm, 149.2250 mm)
Point 3:(25.4000 mm, 149.2250 mm)
Point 4:(0.0000 mm, 149.2250 mm)
Width:1.0000 inches (25.4000 mm)
Height:5.8750 inches (149.2250 mm)
