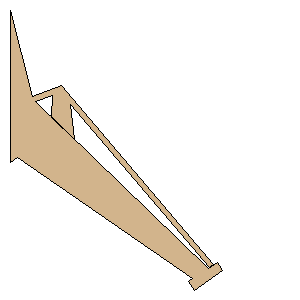

Semroc Mars Lander Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 25.9080 mm) | | Point 2: | (0.0647 mm, 33.3895 mm) | | Point 3: | (4.4640 mm, 30.4135 mm) | | Point 4: | (106.6800 mm, 100.8380 mm) | | Point 5: | (104.3940 mm, 102.8700 mm) | | Point 6: | (107.4420 mm, 107.6960 mm) | | Point 7: | (124.2060 mm, 96.5200 mm) | | Point 8: | (120.9040 mm, 91.6940 mm) | | Point 9: | (115.7220 mm, 95.2541 mm) | | Point 10: | (14.9352 mm, -2.0574 mm) | | Point 11: | (24.6380 mm, -5.8420 mm) | | Point 12: | (24.3840 mm, 6.9342 mm) | | Point 13: | (37.5920 mm, 19.8120 mm) | | Point 14: | (35.5600 mm, -0.6350 mm) | | Point 15: | (116.0780 mm, 94.7420 mm) | | Point 16: | (118.6420 mm, 92.9256 mm) | | Point 17: | (30.1244 mm, -11.6840 mm) | | Point 18: | (12.9540 mm, -4.9530 mm) | | Point 19: | (0.0000 mm, -55.6260 mm) | | Point 20: | (0.0000 mm, -19.0500 mm) | | Point 21: | (0.0000 mm, 0.0000 mm) | | Width: | 4.8900 inches (124.2060 mm) | | Height: | 6.4300 inches (163.3220 mm) |
