Rocketry Parts Database >> Fins >>

Shrox Industria Javelin Trapezoi Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

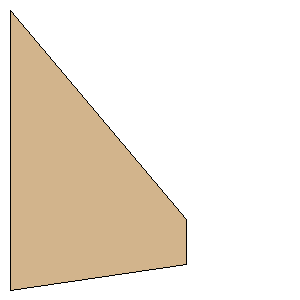

Root Chord:2.3750 inches (60.3250 mm)
Tip Chord:0.3750 inches (9.5250 mm)
Sweep Distance:1.7800 inches (45.2120 mm)
SemiSpan:1.5000 inches (38.1000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(38.1000 mm, 45.2120 mm)
Point 3:(38.1000 mm, 54.7370 mm)
Point 4:(0.0000 mm, 60.3250 mm)
Width:1.5000 inches (38.1000 mm)
Height:2.3750 inches (60.3250 mm)
