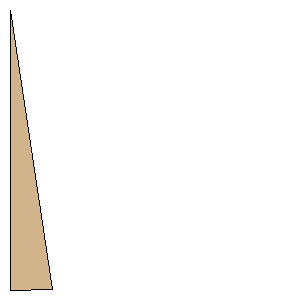

AGM-65B Maverick with camera Tra Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:7.3290 inches (186.1566 mm)
Tip Chord:0.0000 inches (0.0000 mm)
Sweep Distance:7.3260 inches (186.0804 mm)
SemiSpan:1.1250 inches (28.5750 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(28.5750 mm, 186.0804 mm)
Point 3:(28.5750 mm, 186.0804 mm)
Point 4:(0.0000 mm, 186.1566 mm)
Width:1.1250 inches (28.5750 mm)
Height:7.3290 inches (186.1566 mm)
