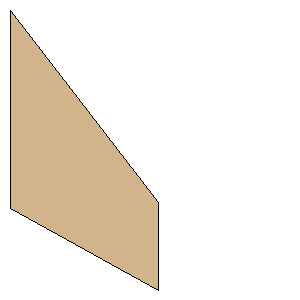

Quest Terrier-Orion Trapezoid Fi Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.0472 inches (51.9989 mm) | | Tip Chord: | 0.9055 inches (22.9997 mm) | | Sweep Distance: | 1.9882 inches (50.5003 mm) | | SemiSpan: | 1.5354 inches (38.9992 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (38.9992 mm, 50.5003 mm) | | Point 3: | (38.9992 mm, 73.5000 mm) | | Point 4: | (0.0000 mm, 51.9989 mm) | | Width: | 1.5354 inches (38.9992 mm) | | Height: | 2.8937 inches (73.5000 mm) |
