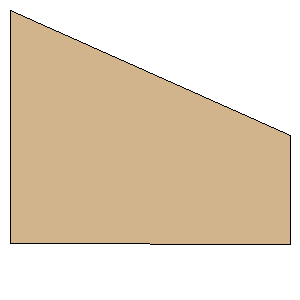

Small Scale SA2 Trapezoid Fin Se Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 0.3350 inches (8.5090 mm) | | Tip Chord: | 0.1570 inches (3.9878 mm) | | Sweep Distance: | 0.1800 inches (4.5720 mm) | | SemiSpan: | 0.4020 inches (10.2108 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (10.2108 mm, 4.5720 mm) | | Point 3: | (10.2108 mm, 8.5598 mm) | | Point 4: | (0.0000 mm, 8.5090 mm) | | Width: | 0.4020 inches (10.2108 mm) | | Height: | 0.3370 inches (8.5598 mm) |
