Rocketry Parts Database >> Fins >>

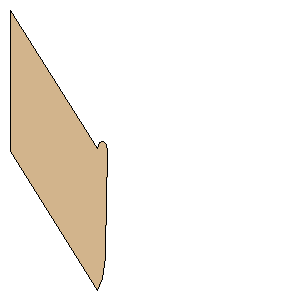

FlisKits Tumbe Weed Freeform Fin Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 20.6375 mm)
Point 2:(12.7777 mm, 40.8940 mm)
Point 3:(13.5026 mm, 39.1579 mm)
Point 4:(13.9168 mm, 36.2067 mm)
Point 5:(14.1159 mm, 26.7820 mm)
Point 6:(14.1678 mm, 22.1653 mm)
Point 7:(14.1678 mm, 20.8685 mm)
Point 8:(14.1159 mm, 19.6235 mm)
Point 9:(13.6491 mm, 19.1567 mm)
Point 10:(13.1304 mm, 19.4160 mm)
Point 11:(12.8191 mm, 20.1941 mm)
Point 12:(0.0000 mm, 0.0000 mm)
Width:0.8125 inches (20.6375 mm)
Height:1.6100 inches (40.8940 mm)
