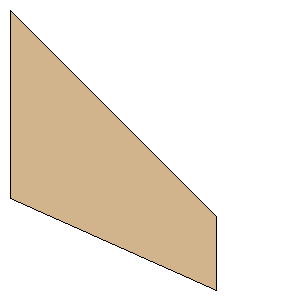

Last Point Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:1.9375 inches (49.2125 mm)
Tip Chord:0.7500 inches (19.0500 mm)
Sweep Distance:2.1250 inches (53.9750 mm)
SemiSpan:2.1250 inches (53.9750 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(53.9750 mm, 53.9750 mm)
Point 3:(53.9750 mm, 73.0250 mm)
Point 4:(0.0000 mm, 49.2125 mm)
Width:2.1250 inches (53.9750 mm)
Height:2.8750 inches (73.0250 mm)
