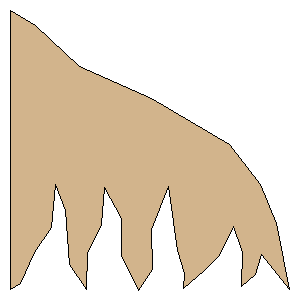

Flaming Spaghettini Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 69.8500 mm) | | Point 2: | (2.7216 mm, 68.3572 mm) | | Point 3: | (6.1115 mm, 60.6855 mm) | | Point 4: | (10.3933 mm, 54.4411 mm) | | Point 5: | (11.4638 mm, 43.7364 mm) | | Point 6: | (13.7832 mm, 50.1792 mm) | | Point 7: | (14.8536 mm, 63.5401 mm) | | Point 8: | (19.0500 mm, 69.8500 mm) | | Point 9: | (19.3139 mm, 60.8639 mm) | | Point 10: | (22.8822 mm, 53.7274 mm) | | Point 11: | (23.5958 mm, 44.4500 mm) | | Point 12: | (27.8777 mm, 52.1418 mm) | | Point 13: | (27.8777 mm, 61.5776 mm) | | Point 14: | (32.1596 mm, 70.0000 mm) | | Point 15: | (35.5494 mm, 64.9674 mm) | | Point 16: | (35.3710 mm, 54.9763 mm) | | Point 17: | (39.6529 mm, 44.0932 mm) | | Point 18: | (41.9723 mm, 60.1503 mm) | | Point 19: | (43.5780 mm, 65.8594 mm) | | Point 20: | (43.3996 mm, 69.6061 mm) | | Point 21: | (48.5735 mm, 65.1458 mm) | | Point 22: | (52.3202 mm, 61.3991 mm) | | Point 23: | (55.8884 mm, 54.0843 mm) | | Point 24: | (58.0294 mm, 60.5071 mm) | | Point 25: | (57.8510 mm, 69.2493 mm) | | Point 26: | (61.4192 mm, 66.2163 mm) | | Point 27: | (62.8465 mm, 61.0423 mm) | | Point 28: | (69.8500 mm, 69.8500 mm) | | Point 29: | (66.5931 mm, 53.3906 mm) | | Point 30: | (62.6681 mm, 43.7364 mm) | | Point 31: | (54.8179 mm, 33.5669 mm) | | Point 32: | (35.3710 mm, 22.1485 mm) | | Point 33: | (17.3514 mm, 14.1200 mm) | | Point 34: | (6.2899 mm, 3.7721 mm) | | Point 35: | (0.0000 mm, 0.0000 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 2.7559 inches (70.0000 mm) |
