Rocketry Parts Database >> Fins >>

Sam-X Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:2.6250 inches (66.6750 mm)
Tip Chord:0.0000 inches (0.0000 mm)
Sweep Distance:1.2500 inches (31.7500 mm)
SemiSpan:1.2500 inches (31.7500 mm)

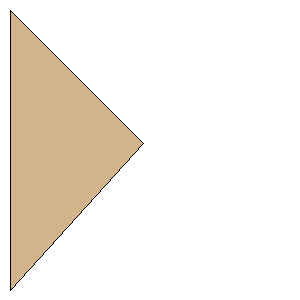

Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(31.7500 mm, 31.7500 mm)
Point 3:(31.7500 mm, 31.7500 mm)
Point 4:(0.0000 mm, 66.6750 mm)
Width:1.2500 inches (31.7500 mm)
Height:2.6250 inches (66.6750 mm)
