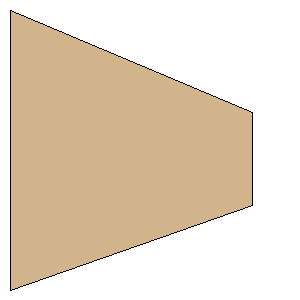

apogee_avion.rkt Trapezoid Fin S Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.2500 inches (57.1500 mm) | | Tip Chord: | 0.7500 inches (19.0500 mm) | | Sweep Distance: | 0.8220 inches (20.8788 mm) | | SemiSpan: | 1.9520 inches (49.5808 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (49.5808 mm, 20.8788 mm) | | Point 3: | (49.5808 mm, 39.9288 mm) | | Point 4: | (0.0000 mm, 57.1500 mm) | | Width: | 1.9520 inches (49.5808 mm) | | Height: | 2.2500 inches (57.1500 mm) |
