Rocketry Parts Database >> Fins >>

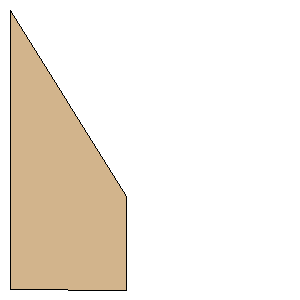

Orbital Transport Trapezoid Fin Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:1.3290 inches (33.7566 mm)
Tip Chord:0.4420 inches (11.2268 mm)
Sweep Distance:0.8882 inches (22.5603 mm)
SemiSpan:0.5550 inches (14.0970 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(14.0970 mm, 22.5603 mm)
Point 3:(14.0970 mm, 33.7871 mm)
Point 4:(0.0000 mm, 33.7566 mm)
Width:0.5550 inches (14.0970 mm)
Height:1.3302 inches (33.7871 mm)
