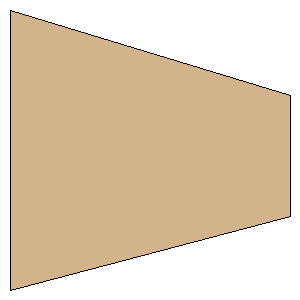

Nike Smoke Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 0.7500 inches (19.0500 mm) | | Tip Chord: | 0.3250 inches (8.2550 mm) | | Sweep Distance: | 0.2293 inches (5.8242 mm) | | SemiSpan: | 0.7500 inches (19.0500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (19.0500 mm, 5.8242 mm) | | Point 3: | (19.0500 mm, 14.0792 mm) | | Point 4: | (0.0000 mm, 19.0500 mm) | | Width: | 0.7500 inches (19.0500 mm) | | Height: | 0.7500 inches (19.0500 mm) |
