Night Sky Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Basswood |

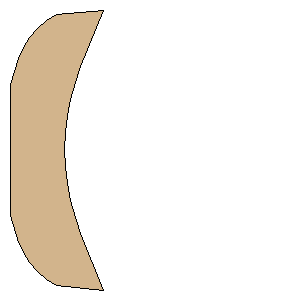

Download as PDF | Point 1: | (0.0000 mm, 44.4500 mm) | | Point 2: | (3.0278 mm, 53.5334 mm) | | Point 3: | (4.5786 mm, 57.1994 mm) | | Point 4: | (6.6830 mm, 60.5781 mm) | | Point 5: | (9.2895 mm, 63.5866 mm) | | Point 6: | (12.3340 mm, 66.1508 mm) | | Point 7: | (15.7418 mm, 68.2080 mm) | | Point 8: | (31.7500 mm, 69.7871 mm) | | Point 9: | (24.0559 mm, 50.5773 mm) | | Point 10: | (22.1034 mm, 45.1071 mm) | | Point 11: | (20.5732 mm, 39.5041 mm) | | Point 12: | (19.4742 mm, 33.8009 mm) | | Point 13: | (18.8129 mm, 28.0305 mm) | | Point 14: | (18.5929 mm, 22.2264 mm) | | Point 15: | (18.8157 mm, 16.4225 mm) | | Point 16: | (19.4799 mm, 10.6525 mm) | | Point 17: | (20.5816 mm, 4.9497 mm) | | Point 18: | (22.1146 mm, -0.6525 mm) | | Point 19: | (24.0697 mm, -6.1217 mm) | | Point 20: | (31.7500 mm, -25.2699 mm) | | Point 21: | (15.7994 mm, -23.7215 mm) | | Point 22: | (12.3580 mm, -21.6621 mm) | | Point 23: | (9.2836 mm, -19.0867 mm) | | Point 24: | (6.6529 mm, -16.0595 mm) | | Point 25: | (4.5315 mm, -12.6559 mm) | | Point 26: | (2.9723 mm, -8.9609 mm) | | Point 27: | (0.0000 mm, 0.0000 mm) | | Width: | 1.7500 inches (44.4500 mm) | | Height: | 3.7424 inches (95.0570 mm) |
