Rocketry Parts Database >> Fins >>

Night Sky Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Basswood

Download as PDF

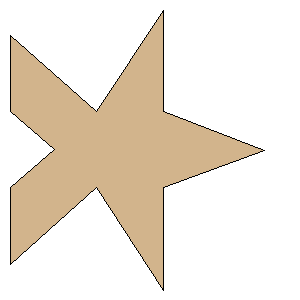

Point 1:(0.0000 mm, 18.9821 mm)
Point 2:(10.9982 mm, 28.6143 mm)
Point 3:(-0.0982 mm, 38.1000 mm)
Point 4:(-0.0982 mm, 57.1500 mm)
Point 5:(21.5849 mm, 38.1000 mm)
Point 6:(38.1922 mm, 63.6112 mm)
Point 7:(38.1922 mm, 38.1029 mm)
Point 8:(63.5000 mm, 28.6743 mm)
Point 9:(38.1922 mm, 19.0387 mm)
Point 10:(38.1922 mm, -6.3500 mm)
Point 11:(21.5849 mm, 19.0500 mm)
Point 12:(0.0000 mm, 0.0000 mm)
Width:2.5039 inches (63.5982 mm)
Height:2.7544 inches (69.9612 mm)
