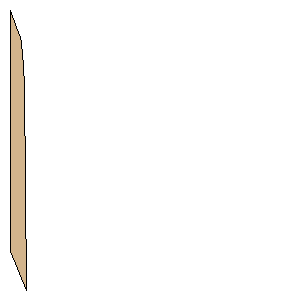

M2 - Mars Challenger Freeform Fi Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Basswood |
Download as PDF | Point 1: | (0.0000 mm, 97.5958 mm) | | Point 2: | (6.8275 mm, 113.3500 mm) | | Point 3: | (5.7594 mm, 30.0398 mm) | | Point 4: | (4.9920 mm, 16.9935 mm) | | Point 5: | (4.8085 mm, 14.9714 mm) | | Point 6: | (4.4972 mm, 12.9650 mm) | | Point 7: | (4.0592 mm, 10.9823 mm) | | Point 8: | (3.4965 mm, 9.0314 mm) | | Point 9: | (2.8111 mm, 7.1201 mm) | | Point 10: | (0.0000 mm, 0.0000 mm) | | Width: | 3.8424 inches (97.5958 mm) | | Height: | 4.4626 inches (113.3500 mm) |
