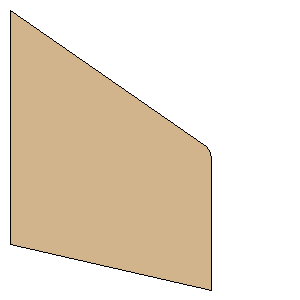

mods_estes_boattailfatboy.rkt Fr Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Basswood |
Download as PDF | Point 1: | (0.0000 mm, 74.8108 mm) | | Point 2: | (64.4007 mm, 89.2826 mm) | | Point 3: | (64.4007 mm, 80.5392 mm) | | Point 4: | (64.4007 mm, 67.2734 mm) | | Point 5: | (64.2812 mm, 48.1196 mm) | | Point 6: | (64.2607 mm, 47.4985 mm) | | Point 7: | (64.1795 mm, 46.8823 mm) | | Point 8: | (64.0385 mm, 46.2771 mm) | | Point 9: | (63.8390 mm, 45.6885 mm) | | Point 10: | (63.5829 mm, 45.1223 mm) | | Point 11: | (63.2727 mm, 44.5838 mm) | | Point 12: | (62.9114 mm, 44.0782 mm) | | Point 13: | (62.5024 mm, 43.6103 mm) | | Point 14: | (61.5573 mm, 42.8054 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 2.9453 inches (74.8108 mm) | | Height: | 3.5151 inches (89.2826 mm) |
