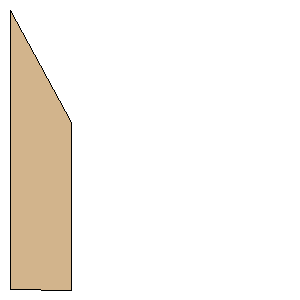

Peter Always Black Brant VI Trap Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 3.1250 inches (79.3750 mm) | | Tip Chord: | 1.8750 inches (47.6250 mm) | | Sweep Distance: | 1.2561 inches (31.9049 mm) | | SemiSpan: | 0.6875 inches (17.4625 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (17.4625 mm, 31.9049 mm) | | Point 3: | (17.4625 mm, 79.5299 mm) | | Point 4: | (0.0000 mm, 79.3750 mm) | | Width: | 0.6875 inches (17.4625 mm) | | Height: | 3.1311 inches (79.5299 mm) |
