Hawkeye Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Basswood

Download as PDF

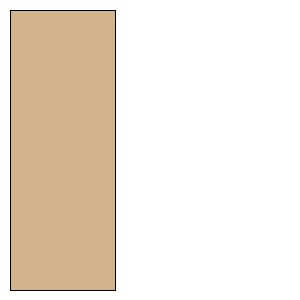

Root Chord:4.0000 inches (101.6000 mm)
Tip Chord:4.0000 inches (101.6000 mm)
Sweep Distance:0.0000 inches (0.0000 mm)
SemiSpan:1.5000 inches (38.1000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(38.1000 mm, 0.0000 mm)
Point 3:(38.1000 mm, 101.6000 mm)
Point 4:(0.0000 mm, 101.6000 mm)
Width:1.5000 inches (38.1000 mm)
Height:4.0000 inches (101.6000 mm)
