Rocketry Parts Database >> Fins >>

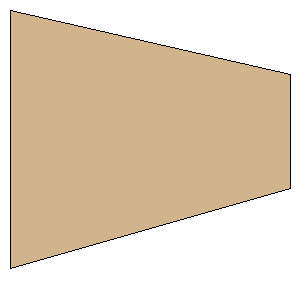

oop_estes_nike_ajax_24mm.rkt Tra Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Basswood

Download as PDF

Root Chord:3.0000 inches (76.2000 mm)
Tip Chord:1.3250 inches (33.6550 mm)
Sweep Distance:0.7500 inches (19.0500 mm)
SemiSpan:3.2500 inches (82.5500 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(82.5500 mm, 19.0500 mm)
Point 3:(82.5500 mm, 52.7050 mm)
Point 4:(0.0000 mm, 76.2000 mm)
Width:3.2500 inches (82.5500 mm)
Height:3.0000 inches (76.2000 mm)
