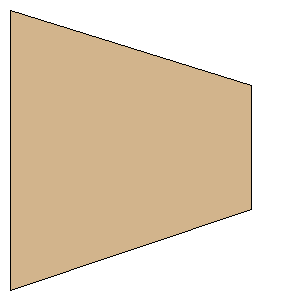

Estes - Python Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 3.9600 inches (100.5840 mm) | | Tip Chord: | 1.7500 inches (44.4500 mm) | | Sweep Distance: | 1.0738 inches (27.2745 mm) | | SemiSpan: | 3.4200 inches (86.8680 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (86.8680 mm, 27.2745 mm) | | Point 3: | (86.8680 mm, 71.7245 mm) | | Point 4: | (0.0000 mm, 100.5840 mm) | | Width: | 3.4200 inches (86.8680 mm) | | Height: | 3.9600 inches (100.5840 mm) |
