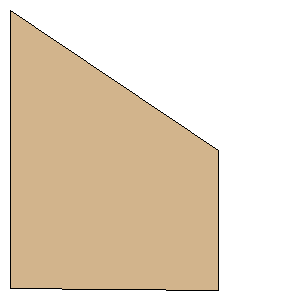

Estes Airborne Surveillance Miss Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 1.0000 inches (25.4000 mm) | | Tip Chord: | 0.5000 inches (12.7000 mm) | | Sweep Distance: | 0.5060 inches (12.8524 mm) | | SemiSpan: | 0.7500 inches (19.0500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (19.0500 mm, 12.8524 mm) | | Point 3: | (19.0500 mm, 25.5524 mm) | | Point 4: | (0.0000 mm, 25.4000 mm) | | Width: | 0.7500 inches (19.0500 mm) | | Height: | 1.0060 inches (25.5524 mm) |
