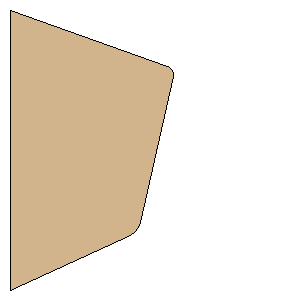

Estes Cherokee-D Freeform Fin Se Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Basswood

Download as PDF

Point 1:(0.0000 mm, 98.3283 mm)
Point 2:(42.2189 mm, 79.1111 mm)
Point 3:(42.7402 mm, 78.8442 mm)
Point 4:(43.2347 mm, 78.5303 mm)
Point 5:(43.6981 mm, 78.1722 mm)
Point 6:(44.1266 mm, 77.7730 mm)
Point 7:(44.5165 mm, 77.3360 mm)
Point 8:(44.8645 mm, 76.8649 mm)
Point 9:(45.1676 mm, 76.3637 mm)
Point 10:(45.4232 mm, 75.8367 mm)
Point 11:(45.7838 mm, 74.7236 mm)
Point 12:(57.3002 mm, 23.4609 mm)
Point 13:(57.3688 mm, 23.0063 mm)
Point 14:(57.3710 mm, 22.5464 mm)
Point 15:(57.3068 mm, 22.0911 mm)
Point 16:(57.1775 mm, 21.6499 mm)
Point 17:(56.9858 mm, 21.2319 mm)
Point 18:(56.7357 mm, 20.8460 mm)
Point 19:(56.4325 mm, 20.5003 mm)
Point 20:(56.0826 mm, 20.2020 mm)
Point 21:(55.6932 mm, 19.9574 mm)
Point 22:(55.2726 mm, 19.7716 mm)
Point 23:(0.0000 mm, 0.0000 mm)
Width:3.8712 inches (98.3283 mm)
Height:3.8712 inches (98.3283 mm)
