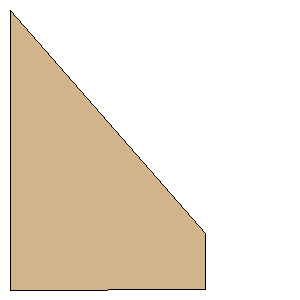

Aardvark Rockets SH-5 Griffon Tr Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 3.0930 inches (78.5622 mm) | | Tip Chord: | 0.6190 inches (15.7226 mm) | | Sweep Distance: | 2.4739 inches (62.8371 mm) | | SemiSpan: | 2.1650 inches (54.9910 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (54.9910 mm, 62.8371 mm) | | Point 3: | (54.9910 mm, 78.5597 mm) | | Point 4: | (0.0000 mm, 78.5622 mm) | | Width: | 2.1650 inches (54.9910 mm) | | Height: | 3.0930 inches (78.5622 mm) |
