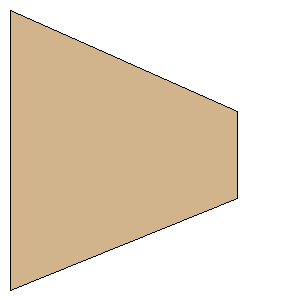

scratch_stage_tree.rkt Trapezoid Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 4.0000 inches (101.6000 mm) | | Tip Chord: | 1.2500 inches (31.7500 mm) | | Sweep Distance: | 1.4470 inches (36.7538 mm) | | SemiSpan: | 3.2500 inches (82.5500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (82.5500 mm, 36.7538 mm) | | Point 3: | (82.5500 mm, 68.5038 mm) | | Point 4: | (0.0000 mm, 101.6000 mm) | | Width: | 3.2500 inches (82.5500 mm) | | Height: | 4.0000 inches (101.6000 mm) |
